Overspeed Governor

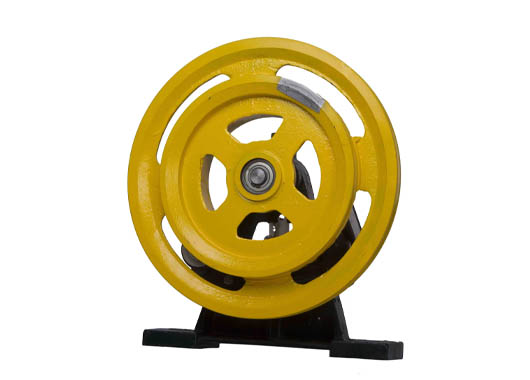

EOSG 1
| Pulley Dia. | 300mm |
|---|---|
| Rope Dia. | 6mm - 8mm |
| Nominal Speed | 0.5 m/s |
| Tripping Speed | 0.63 m/s |

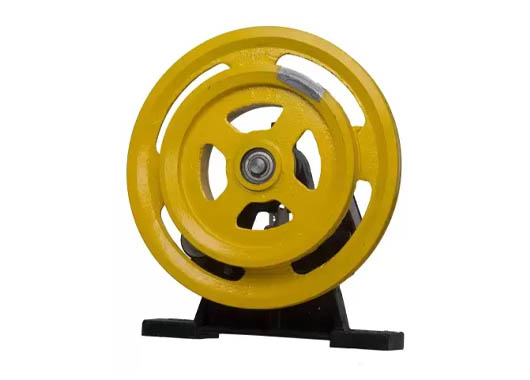

EOSG 2
| Pulley Dia. | 300mm |
|---|---|
| Rope Dia. | 6mm - 8mm |
| Nominal Speed | 0.63 m/s |
| Tripping Speed | 0.8 m/s |
EOSG 3
| Pulley Dia. | 300mm |
|---|---|
| Rope Dia. | 6mm - 8mm |
| Nominal Speed | 0.82 m/s |
| Tripping Speed | 0.98 m/s |
EOSG 4
| Pulley Dia. | 300mm |
|---|---|
| Rope Dia. | 6mm - 8mm |
| Nominal Speed | 1.00 m/s |
| Tripping Speed | 1.25 m/s |
EOSG 5
| Pulley Dia. | 300mm |
|---|---|
| Rope Dia. | 6mm - 8mm |
| Nominal Speed | 1.20 m/s |
| Tripping Speed | 1.58 m/s |
